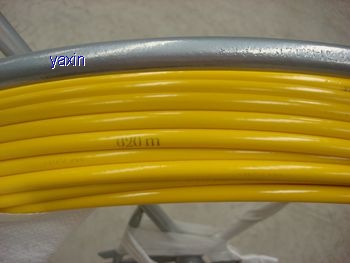

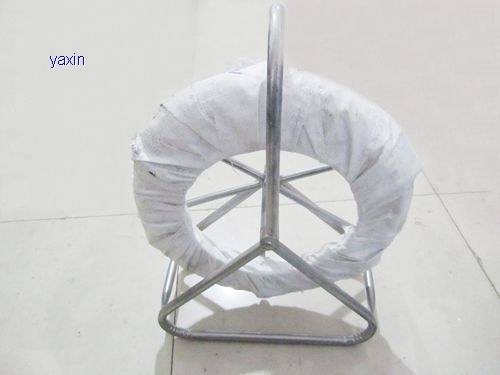

fiberglass duct rodder

fiberglass duct rodder fiberglass duct rodder fiberglass duct rodder
Diametere-length
Weight(KG)
Packing size(cm)
4.5mm-(50m-200m)
4.5-7.5
56.5X19.5*68.5
6mm-(50m-200m)
5.5-9.5
72*20*66
8mm-(100m-250m)
20-30
0.8*0.48*0.9
10mm-(100m-300m)
25-35
1.2*0.48*1.2
  • Material:
    • Inner rod: fiberglass.
    • Exterior coating: ABS plastic.
    • Wheel: rubber, steel.
    • Drawing head: copper.
    • Frame: steel.
  • Frame finish: powder coated, zinc plated.
  • Specification:
    • Rod diameter: 4mm - 16mm.
    • Length of fiberglass rod: 30m - 500m.
    • Working temperature: -40°C to + 80°C (-40°F to 176°F).
    • Minimum bend radius: 4" (That is for 4mm rod diameter, other rods with larger diameter have larger bend radius).
    • Max pulling strength: 4.5T (For rod diameter 16mm, other rods with smaller diameter have less pulling strength).
    • Wheel: pneumatic/iron tyre or no wheel.
    • Fiberglass rod color: yellow, blue, white, red, black or as your requirements.
    • Package: plastic wrap and then into carton.
    • Note: we offer various sizes and colors for any specific requirement as customers' demand.
